420CC Engine 15 HP 4 Stroke OHV Horizontal Gas Engine Gas Powered Motor Pull Start Petrol Engine Replaces Go Kart Motor Garden

Specification

Material: Aluminium, Iron

Engine Type: 4 Stroke

Description: Gasoline Engine

Starting System: Pull Start

Power: 9700W 15HP

Rated Power: 8800W

Color: Red & Black

Fuel Type: Gasoline

Engine Displacement: 420cc

Rotational Speed: 3000-3600rpm

Fuel Capacity: 6.5L/1.72gal

Fuel Consumption: ≤ 374g/kw.h

Engine Oil Capacity:1.1L/0.92gal

Gross Weight: 36.5kg/80.47lbs

Net Weight: 28.15kg/62lbs

Product Size: 40.5*32*44cm/15.94*12.6*17.32in

Package Size: 55*46*49.5cm/21.65*18.1*19.5in

How to Use

1. Check the oil level, to the line above H. Add about 600ml 4-stroke gasoline engine oil, series: 15W30 or 15W40 (Statement: if the engine oil is not enough, it’ll cause the engine not to start. If it starts, the engine will shake.)

2. Add petrol 92# or 95# (Statement: when you put the fuel tank cap, you will have to fix the two ears in the cap well with the part concave in, then press the cap and turn the fuel tank cap.)

3. Turn the speed lever to the left side (new machine keeps the position, and don’t move it). Turn the check valve to the left side. Turn the fuel regulate valve on the right side.

4. Turn the engine switch to the ON position.

5. Start the engine.

6. After the engine starts, turn the check valve to the right side.

Package Included

1* Engine

1* Spark Plug Sleeve

1* Multilingual Manual

All Accessories for Installation

Notes

1. Please read the operating manual completely before use and pay particular attention to the safety instructions included.

2. Please change the engine oil and pump oil after the break-in period (10 hours). After that, it is important to change these oils every 100 hours.

3. After a long time stock, it is important to change the new petrol for the carburetor and fuel tank.

4. Please allow the slight color difference caused by the shooting light and 1-3cm error because of manual measurement, and you’ll want to do not mind before ordering.

Strong Power: The power of the gas engine is up to 9700W and its rated speed is up to 3600rpm, which can provide strong power for machine operation and help you finish your job quickly and efficiently.
Low Fuel Consumption: The engine is equipped with a high-precision carburetor that can reduce fuel consumption(≤374g/kw.h) and cost. When it has low oil, the machine will automatically stop working. So you’ll avoid the engine suddenly stopping whilst you are working.

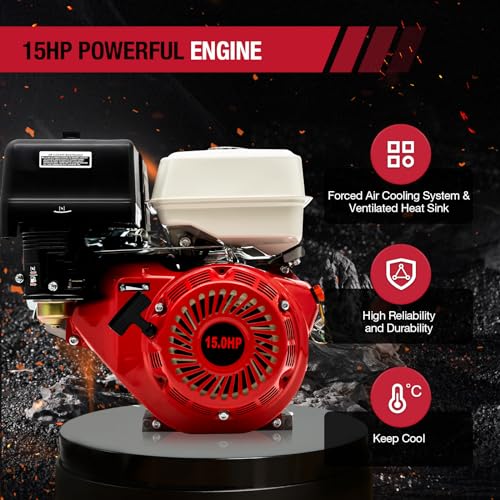

Efficient Cooling System: This gas engine featured with forced air cooling system and ventilated heat sink, the motor can keep cool, which provides high reliability and durability.
Ergonomic Design: This engine has a start deal with and a general regulate area, which fits ergonomically and makes it easy to start and use.
Application: This engine is ideal for such machines with suitable crankshaft as water pumps, vibrators, dosing machines, puffers, threshers, recreational vehicles, pressure washers, air compressors, trenchers, concrete/mortar mixers/saws, go-karts, minibikes, lawnmowers, log-splitter, and vacuums.
