4-Stroke Gasoline Engine,15HP 420cc Engine Motor Start Engine Gas Power Gasoline,Pull Start,8800W,3000-3600rpm

Application

This engine is ideal for such machines with suitable crankshaft as water pumps, vibrators, dosing machines, puffers, threshers, recreational vehicles, pressure washers, air compressors, trenchers, concrete/mortar mixers/saws, go-karts, minibikes, lawnmowers, log-splitter, and vacuums.

Specification

Material: Aluminium, Iron

Engine Type: 4 Stroke

Description: Gasoline Engine

Starting System: Pull Start

Power: 9700W 15HP

Rated Power: 8800W

Color: Red & Black

Fuel Type: Gasoline

Engine Displacement: 420cc

Rotational Speed: 3000-3600rpm

Fuel Capacity: 6.5L/1.72gal

Fuel Consumption: ≤ 374g/kw.h

Engine Oil Capacity:1.1L/0.92gal

Gross Weight: 36.5kg/80.47lbs

Net Weight: 28.15kg/62lbs

Product Size: 40.5*32*44cm/15.94*12.6*17.32in

Package Size: 55*46*49.5cm/21.65*18.1*19.5in

How to Use

1. Check the oil level, to the line above H. Add about 600ml 4-stroke gasoline engine oil, series: 15W30 or 15W40 (Statement: if the engine oil is not enough, it is going to cause the engine not to start. If it starts, the engine will shake.)

2. Add petrol 92# or 95# (Statement: when you put the fuel tank cap, you will have to fix the two ears in the cap well with the part concave in, then press the cap and turn the fuel tank cap.)

3. Turn the speed lever to the left side (new machine keeps the position, and don’t move it). Turn the check valve to the left side. Turn the fuel keep watch over valve on the right side.

4. Turn the engine switch to the ON position.

5. Start the engine.

6. After the engine starts, turn the check valve to the right side.

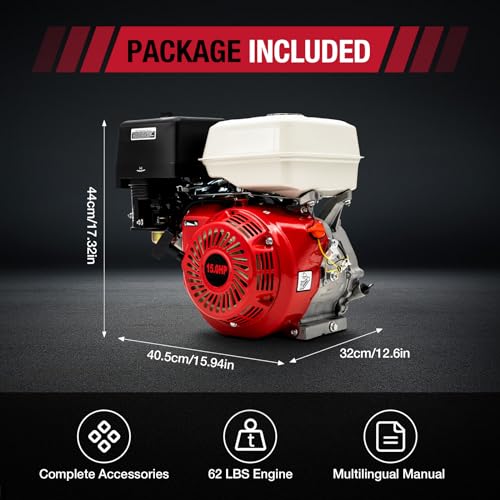

Package Included

1* Engine

1* Spark Plug Sleeve

1* Multilingual Manual

All Accessories for Installation

【High Quality Materials】Our engine is made of Aluminium, Iron, The power of the engine is up to 9700W and its rated speed is up to 3600rpm, which can provide strong power for machine operation and let you finish your job quickly and efficiently.Engine Type: 4 Stroke,Description: Gasoline Engine,Starting System: Pull Start ,Power: 9700W 15HP,Rated Power: 8800W,,Fuel Type: Gasoline,Engine Displacement: 420cc,Rotational Speed: 3000-3600rpm,Engine Oil Capacity:1.1L/0.92gal,Gross Weight: 36.5kg/80.47lbs
【Low Fuel Consumption】The engine is equipped with a high-precision carburetor that can reduce fuel consumption(≤374g/kw.h) and cost. When it has low oil, the machine will automatically stop working. So you’ll avoid the engine suddenly stopping even as you are working.
【Large Capacity】Equipped with a large capacity fuel tank(1.72gal), this engine can work for a very long time. It ensures reliable performance without frequent refilling. Featured with forced air cooling system and ventilated heat sink, the motor can keep cool, which provides high reliability and durability.

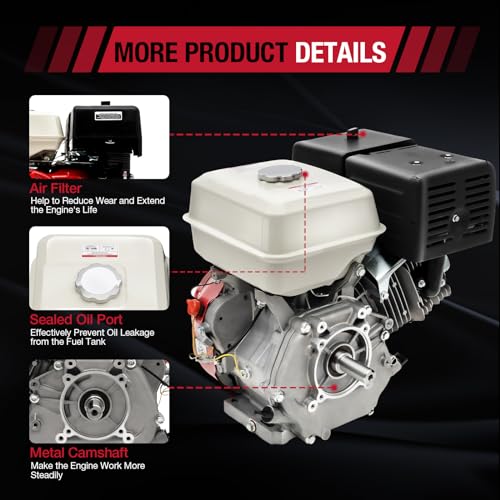

【Easy to Use】The air filter can purify the air. Its filtration performance helps to reduce wear and extend its life.This engine has a start take care of and a general keep watch over area, which fits ergonomically and makes it easy to start and use. Its high-quality silencer will effectively reduce noise and provide you with a slightly quiet working environment.
【Wide Use】This engine is ideal for such machines with suitable crankshaft as water pumps, vibrators, dosing machines, puffers, threshers, recreational vehicles, pressure washers, air compressors, trenchers, concrete/mortar mixers/saws, go-karts, minibikes, lawnmowers, log-splitter, and vacuums.
