4-Stroke 15HP Gasoline Engine, 420cc Engine Motor Start Engine Gas Power Gasoline with Air Cooling System,Pull Start,8800W,3000-3600rpm

Application

This engine is ideal for such machines with suitable crankshaft as water pumps, vibrators, dosing machines, puffers, threshers, recreational vehicles, pressure washers, air compressors, trenchers, concrete/mortar mixers/saws, go-karts, minibikes, lawnmowers, log-splitter, and vacuums.

Specification

Material: Aluminium, Iron

Engine Type: 4 Stroke

Description: Gasoline Engine

Starting System: Pull Start

Power: 9700W 15HP

Rated Power: 8800W

Color: Red & Black

Fuel Type: Gasoline

Engine Displacement: 420cc

Rotational Speed: 3000-3600rpm

Fuel Capacity: 6.5L/1.72gal

Fuel Consumption: ≤ 374g/kw.h

Engine Oil Capacity:1.1L/0.92gal

Gross Weight: 36.5kg/80.47lbs

Net Weight: 28.15kg/62lbs

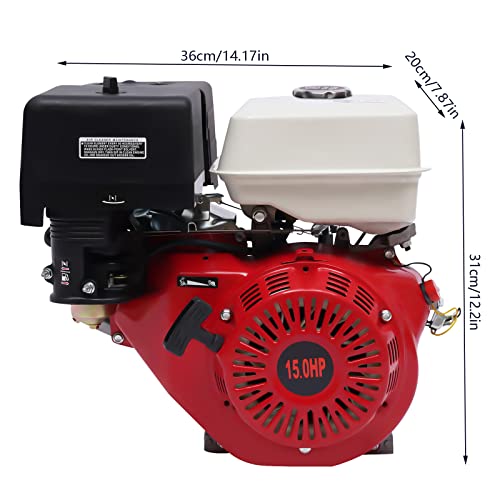

Product Size: 40.5*32*44cm/15.94*12.6*17.32in

Package Size: 55*46*49.5cm/21.65*18.1*19.5in

How to Use

1. Check the oil level, to the line above H. Add about 600ml 4-stroke gasoline engine oil, series: 15W30 or 15W40 (Commentary: if the engine oil isn’t enough, it’s going to cause the engine not to start. If it starts, the engine will shake.)

2. Add petrol 92# or 95# (Commentary: when you put the fuel tank cap, you must fix the two ears in the cap well with the part concave in, then press the cap and turn the fuel tank cap.)

3. Turn the speed lever to the left side (new machine assists in keeping the position, and do not move it). Turn the check valve to the left side. Turn the fuel keep watch over valve on the right side.

4. Turn the engine switch to the ON position.

5. Start the engine.

6. After the engine starts, turn the check valve to the right side.

Package Included

1* Engine

1* Spark Plug Sleeve

1* Multilingual Manual

All Accessories for Installation

【Good Material】Our gasoline engine is equipped with a high-precision carburetor that can reduce fuel consumption(≤374g/kw.h) and cost. The power of the engine is up to 9700W and its rated speed is up to 3600rpm, which may give strong power for machine operation and mean you can finish your job quickly and efficiently.
【Efficient Cooling System】Equipped with a large capacity fuel tank(1.72gal), this engine can work for a very long time. It ensures reliable performance without frequent refilling.Featured with forced air cooling system and ventilated heat sink, the motor can keep cool, which provides high reliability and durability.
【How to Work】1.Check the oil level, to the line above H. Add about 600ml 4-stroke gasoline engine oil, series: 15W30 or 15W40 (Commentary: if the engine oil isn’t enough, it’s going to cause the engine not to start. If it starts, the engine will shake.)2.Add petrol 92# or 95# (Commentary: when you put the fuel tank cap, you must fix the two ears in the cap well with the part concave in, then press the cap and turn the fuel tank cap.)3.Turn the speed lever to the left side (new machine assists in keeping the position, and do not move it). Turn the check valve to the left side. Turn the fuel keep watch over valve on the right side.
【Unique Design】The oil port adopts a cap sealing design to effectively prevent oil leakage from the fuel tank.The air filter can purify the air. Its filtration performance helps to reduce wear and extend its life.
【Wide Applications】This 4 Stroke engine is ideal for such machines with suitable crankshaft as water pumps, vibrators, dosing machines, puffers, threshers, recreational vehicles, pressure washers, air compressors, trenchers, concrete/mortar mixers/saws, go-karts, minibikes, lawnmowers, log-splitter, and vacuums.
