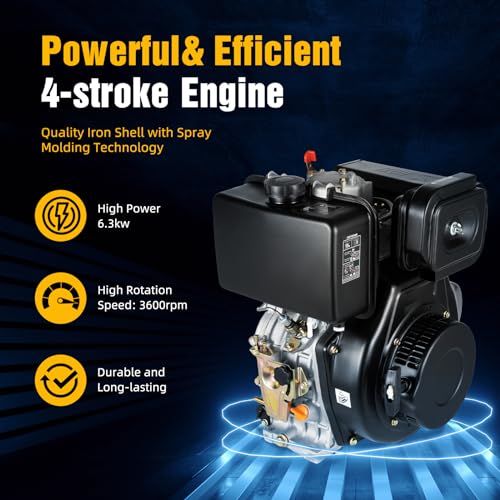

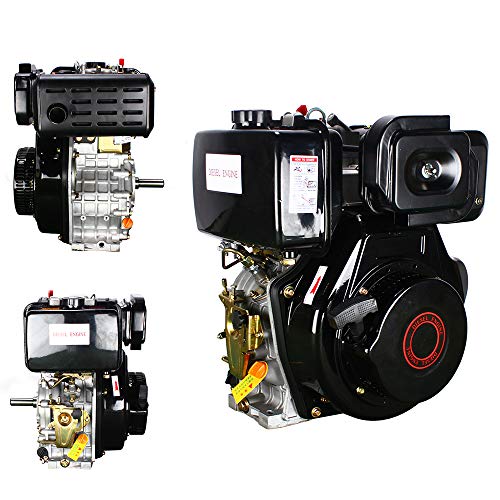

4 Stroke 10HP Single-Cylinder Diesel Engine 406CC Recoil Start System Diesel Motor Forced Air Cooling Diesel Motor for Micro-Tiller Irrigation Machine Lawn Mower

Specifications

Model：186F

Туре：Singer-cylinder, vertical, four-stroke air- cooled diesel engine

Combustion system：Direct injection

Bore*stroke(mm)：86x70mm

Displacement capability(cc)： 406cc

Speed(rpm)：3600 rpm

Fuel：zero#diesel oil

Fuel oil tank volume(L)：five.5 L

Fuel oil consumption fee(g/kw.h)：≤280

Starting system：Recoil

Shaft Kind: Keyed – Straight

Shaft Diameter: 1″ Diameter, 1/four” Keyway

Shaft Period: 72.2mm (2-five/6″ Period)

Shaft I.D. Thread Dimension: 7/sixteen-20UFN-2B, 20mm depth

Bolt Trend: 4 Bolt

Oil System: Pressure and Splash

Engine Cooling Kind: Forced Air Cooling

[ Specification】Combustion system：Direct injection; Bore*stroke(mm)：86x70mm; Displacement capacity(cc)：406cc; Speed(rpm)：3600 rpm; Fuel：0#diesel oil; Fuel oil tank volume(L)：5.5 L; Fuel oil consumption rate(g/kw.h)：≤280; Starting system：Recoil; Shaft Type: Keyed – Straight; Shaft Diameter: 1″ Diameter, 1/4″ Keyway; Shaft Length: 72.2mm (2-5/6″ Length); Shaft I.D. Thread Size: 7/16-20UFN-2B, 20mm depth; Bolt Pattern: 4 Bolt; Oil System: Pressure and Splash
[ Strong Power】The speed can reach up to 3600r/min, providing you with strong power to ensure that your work can be completed quickly and easily.
[ Excellent Cooling System】Through advanced software analysis and optimization design, the reliability of diesel engine in structure and cooling is ensured.
[ Energy Saver】This diesel engine adopts a self-injection diesel system with a good atomization effect and can effectively reduce fuel consumption, and save more costs for you.
[ Application】This diesel engine is widely used in small agricultural machinery, such as micro-tiller, pastoral management machine, irrigation and drainage machine, generator set, small transport vehicle, small walking tractor and other fields.
