10HP Diesel Engine 418cc Go Kart Motor 4 Stroke Diesel Motor Single Cylinder with Forced Air-Cooled Horizontal Shaft Engine for Micro-Tillers Irrigators Generators Lawn Mower

10HP Diesel Engine 418cc Go Kart Motor 4 Stroke Diesel Motor Single Cylinder with Forced Air-Cooled Horizontal Shaft Engine for Micro-Tillers Irrigators Generators Lawn Mower

Specification:

Model: 186FA

Color: Black

Material: Iron, Die-casting Aluminum, Aluminum

Process: Spray Molding

Machine Type: Single-cylinder, Vertical, 4-stroke, Forced Air-cooled

Shaft Type: Recoil Manual Start

Crankshaft: Horizontal

Fuel Type: Diesel

Bolt Pattern: 4 Bolt

Combustion System: Direct Injection

Lubrication Mode: Pressure and Splash Compound Method

Power: 6.3kw, 10hp

Rotation Speed: 3600rpm

Displacement: 418cc

Fuel Tank Capacity: 5.5L/1.45Gal

Lubricating Oil Volume: 1.65L/0.44Gal

Fuel Consumption Rate: ≤280g/Kw. h

Compression Ratio: 19:1

Bore Stroke: 86x72mm/3.39*2.83in

Shaft Diameter: 25mm/0.98in

Shaft Length: 72.2mm/2.84in

Shaft I.D. Thread Size: 7/16-20UFN-2B, 20mm Depth

Gross Weight: 109.9lbs

Net Weight: 92.26lbs

Package Size: 20.87*18.9*22.64in

Product Size: 16.93*16.14*19.29in

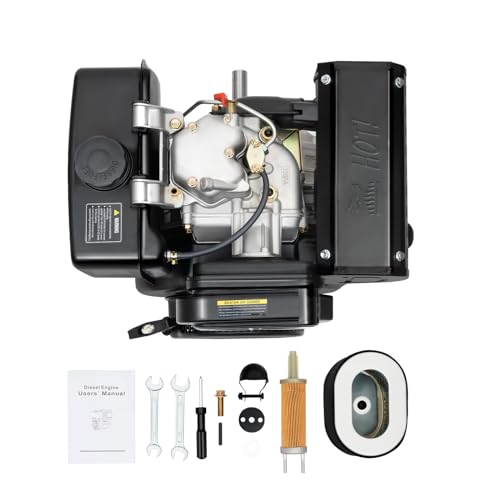

Package Included

1*Diesel Engine

1*English Manual

All Accessories for Assembly

Precautions

1. Please read the operation manual carefully before use.

2. Please use the specified diesel oil and make sure it is clean. Please use different lubricants for different seasons and keep the oil quantity within the specified range.

3. Do not continue to run the engine when it emits black smoke.

4. When the use of the air filter, please take off the air filter element every 50 hours (if there is numerous dust, you’ll be able to take it off every 10 hours, wash it with clean detergent, blow it dry and put it into use again).

[HIGH QUALITY DIESEL ENGINE] Adopting 4-stroke engine, high power [6.3kw] and high speed [3,600rpm] can provide you with strong working power; direct fuel injection system improves engine efficiency; it may be used for micro-tillers, irrigation machines, generators, small transportation vehicles, small walking tractor, and the like..
[STURDY & DURABLE] The diesel engine is made of high-quality iron and die-casting aluminum, with sturdy structure, air-cooling system and dense cooling holes for rapid heat dissipation; the surface is treated with plastic spraying technology, which improves the corrosion resistance of the engine.
[EASY TO USE] This 10hp diesel engine adopts manual recoil start, which is more convenient for your operation; the ergonomically designed knob may also be positioned at any speed; it is usually equipped with a mounting bracket for the throttle cable, which may also be installed according to your needs.
[LARGE CAPACITY FUEL TANK] The fuel tank of this go kart engine can hold 1.45 gallons of fuel, so you’ll be able to use it incessantly without frequent refueling; the high-quality air filter prevents airborne dust from entering the engine interior and improves engine performance.
[QUALITY DETAILS] Low noise to provide you with a comfortable working environment; Pressure reducing valve controls the air pressure in the cylinder to prevent the engine from generating too high air pressure whilst working; Oil dipstick helps you to check the oil at any time with a purpose to refill the oil in time.
