10HP 4 Stroke Diesel Engine Single Cylinder 1″ Shaft Air-Cooled 418CC for widely used in farmland operation, garden irrigation Single-cylinder Vertical 4-stroke Forced Air-cooled
Powerful and Efficient: Diesel engine With a power of up to 6.3kw and a speed of up to 3,600rpm, this four-stroke engine can provide you with strong power to increase your productivity and save you time and energy
Easy to Use: Small diesel engine It adopts a manual recoil start method, Moreover, the ergonomic design knob can position at any speed.It is also equipped with a throttle cable mounting bracket, which can be installed as needed
Good Heat Dissipation:10 hp diesel engine The forced air-cooling system and the dense cooling holes in the casing dissipate heat quickly and promptly, which not only prolongs the engine’s service life but also ensures that the engine will not stall even after a long period of operation
$468.00
Description
Our high-quality diesel engine adopts a four-stroke engine. High power and high speed can provides you with strong working power. The direct injection fuel system is more effective in burning fuel, making improvements to fuel economy and engine efficiency. Excellent performance and fine craftsmanship make it have a longer service life. Please don’t hesitate, it is going to be a good helper for your efficient work.
Application
This product is widely used in farmland operation, garden irrigation, drainage and emergency repair, and small engineering machinery. It can be used in the field of small agricultural machinery such as micro-tillers
Specification
Model: 186FA
Color: Black
Material: Iron, Die-casting Aluminum, Aluminum
Process: Spray Molding
Machine Type: Single-cylinder, Vertical, 4-stroke, Forced Air-cooled
Shaft Type: Recoil Manual Start
Crankshaft: Horizontal
Fuel Type: Diesel
Bolt Pattern: 4 Bolt
Combustion System: Direct Injection
Lubrication Mode: Pressure and Splash Compound Method
Power: 6.3kw, 10hp
Rotation Speed: 3600rpm
Displacement: 418cc
Fuel Tank Capacity: 5.5L/1.45Gal
Lubricating Oil Volume: 1.65L/0.44Gal
Fuel Consumption Rate: ≤280g/Kw. h
Compression Ratio: 19:1
Bore Stroke: 86x72mm/3.39*2.83inch
Shaft Diameter: 25mm/0.98inch
Shaft Length: 72.2mm/2.84inch
Shaft I.D. Thread Size: 7/16-20UFN-2B, 20mm Depth
Gross Weight: 49.85kg/109.9lbs
Net Weight: 41.85kg/92.26lbs
Package Size: 53*48*57.5cm/20.87*18.9*22.64inch
Product Size: 43*41*49cm/ 16.93*16.14*19.29inch

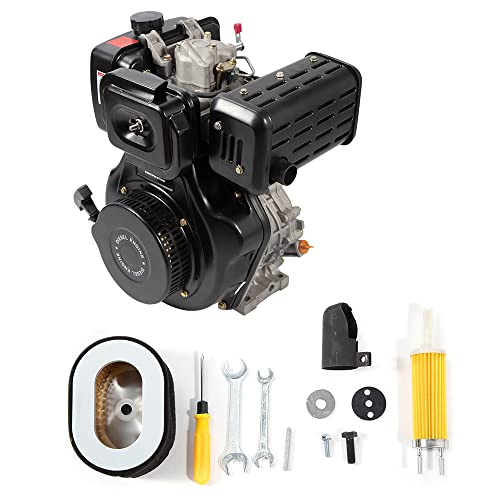

Package Included
1*Diesel Engine
1*English Manual
All Accessories for Assembly
Powerful and Efficient: Diesel engine With a power of as much as 6.3kw and a speed of as much as 3,600rpm, this four-stroke engine can provides you with strong power to increase your productivity and save you time and energy
Easy to Use: Small diesel engine It adopts a manual recoil start method, Moreover, the ergonomic design knob can position at any speed.It’s also equipped with a throttle cable mounting bracket, which will also be installed as needed
Good Heat Dissipation:10 hp diesel engine The forced air-cooling system and the dense cooling holes in the casing dissipate heat quickly and promptly, which not only prolongs the engine’s service life but also ensures that the engine won’t stall even after a long period of operation
Large Fuel Tank Capacity: The fuel tank of this engine holds 1.45 gal of fuel.The large capacity permits you to use it incessantly with fewer interruptions without the need for frequent refueling
Stable Engine: A quality air filter can prevent airborne impurities and dust from entering the engine interior, making improvements to engine performance and extending service life.Moreover, it adopts a single-valve direct fuel injection system
Specification: 10HP 4 Stroke Diesel Engine Single Cylinder 1″ Shaft Air-Cooled 418CC for widely used in farmland operation, garden irrigation Single-cylinder Vertical 4-stroke Forced Air-cooled
|
